CAD Service
DESIGN OF:
Product
Fixtures
Tooling including:
  • Fixtures
  • Models
  • Molds
  • Stamping Dies
  • Patterns / Models
REVERSE ENGINEERING

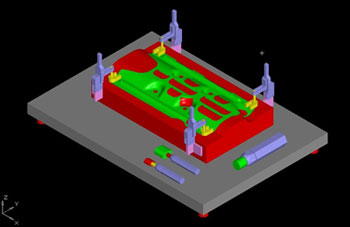

Simple Checking Fixture

CAD designs are shaded, then a jpg is made and sent to customer for concept approval. After approval, final design is ready for manufacturing. All Basic designs are included in the "PARAGON QUALITY PACKAGE."

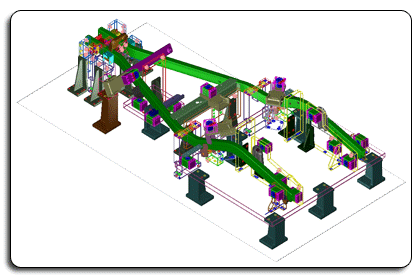

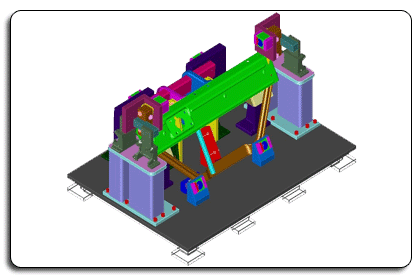

CAD Design

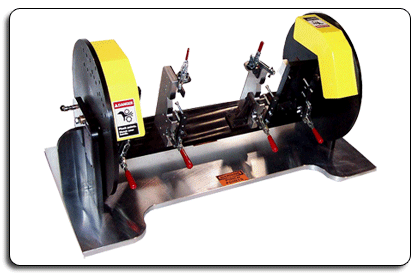

Completed Build
